3D Printable Frames

PreviousPower Requirements

Last updated 2 years ago

This page contains files ready for 3D printing and direct use with the CM405-FC.

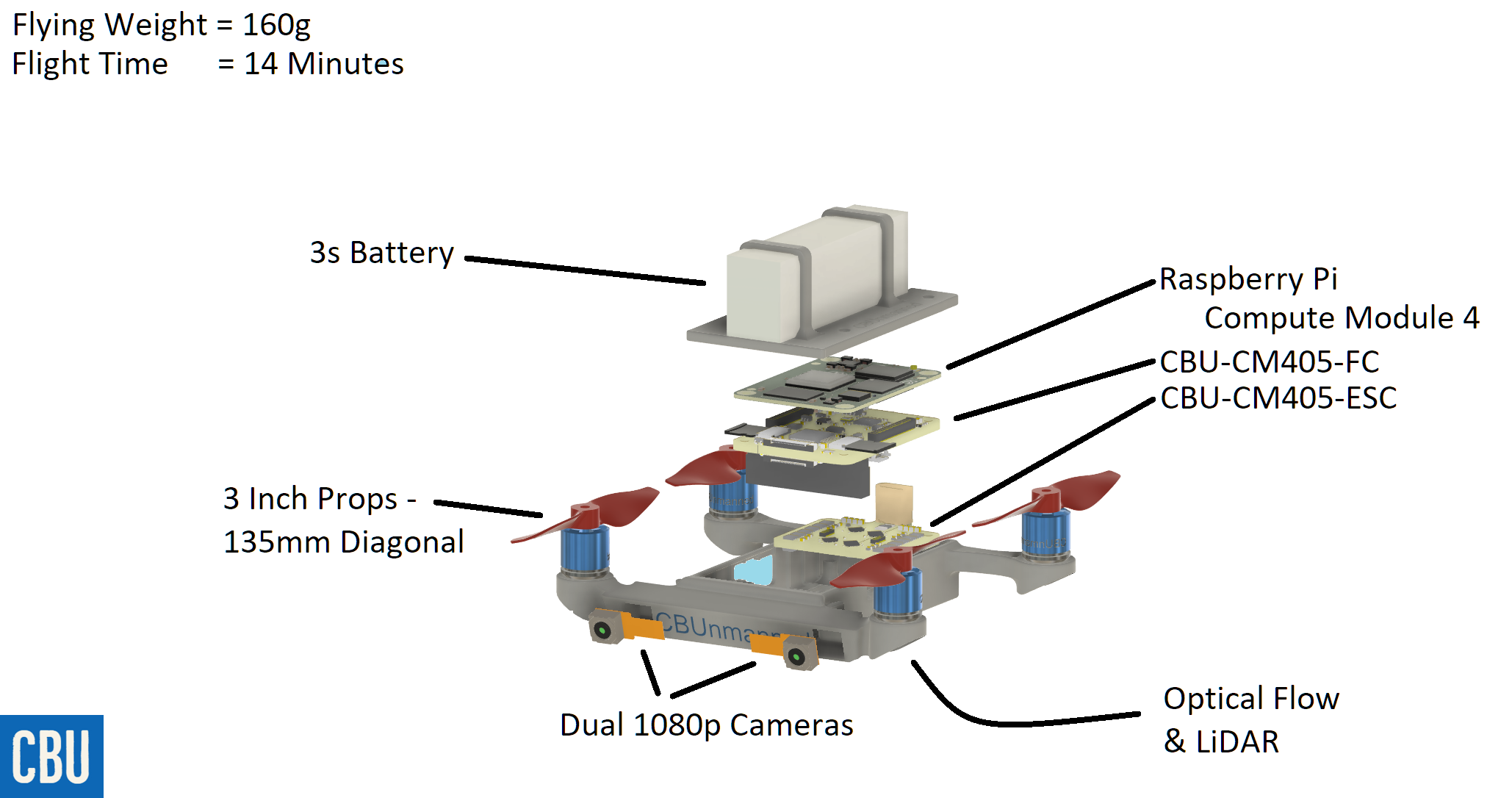

Stereo Camera Drone

Designed to house x2 Pi Zero style Cameras, this frame builds a GPS-denied (indoor) drone perfect for exploring stereo imaging with a flying weight of just 160g and a flight time of 13 minutes.

Parts List:

CM405-FC

CM405-ESC-4s4p

3s 850 mAh LiHV battery

x4 1106 Motors (8-9mm PCD, M1)

x4 3 Inch props

Mateksys Optical Flow & LiDAR Module

x4 M2.5x35mm Bolts

Frame Top

Frame Bottom

(Optional)

Micro SD Cards

Files:

269KB
Frame Top.3mf
745KB
Frame Bottom.3mf
